Design & Built Light and Small Power Distribution
Biig Energy provides custom-designed Light and Small Power Distribution Boards engineered for the most demanding environments. Our solutions deliver safe, reliable low-voltage power distribution for lighting and socket outlets across mining, oil & gas, industrial, and commercial sectors.

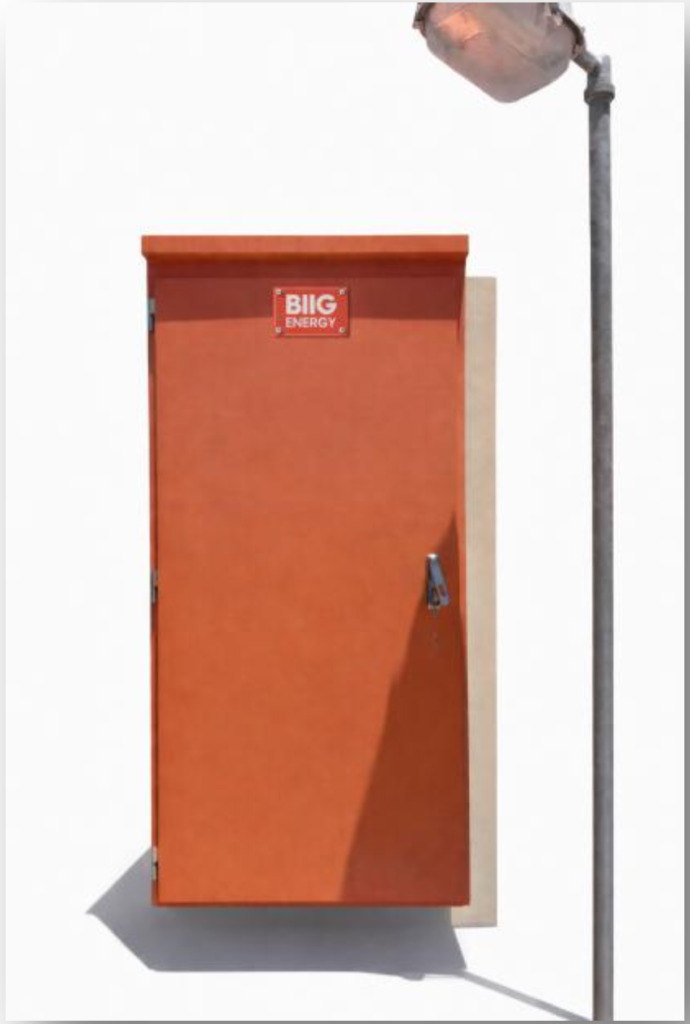

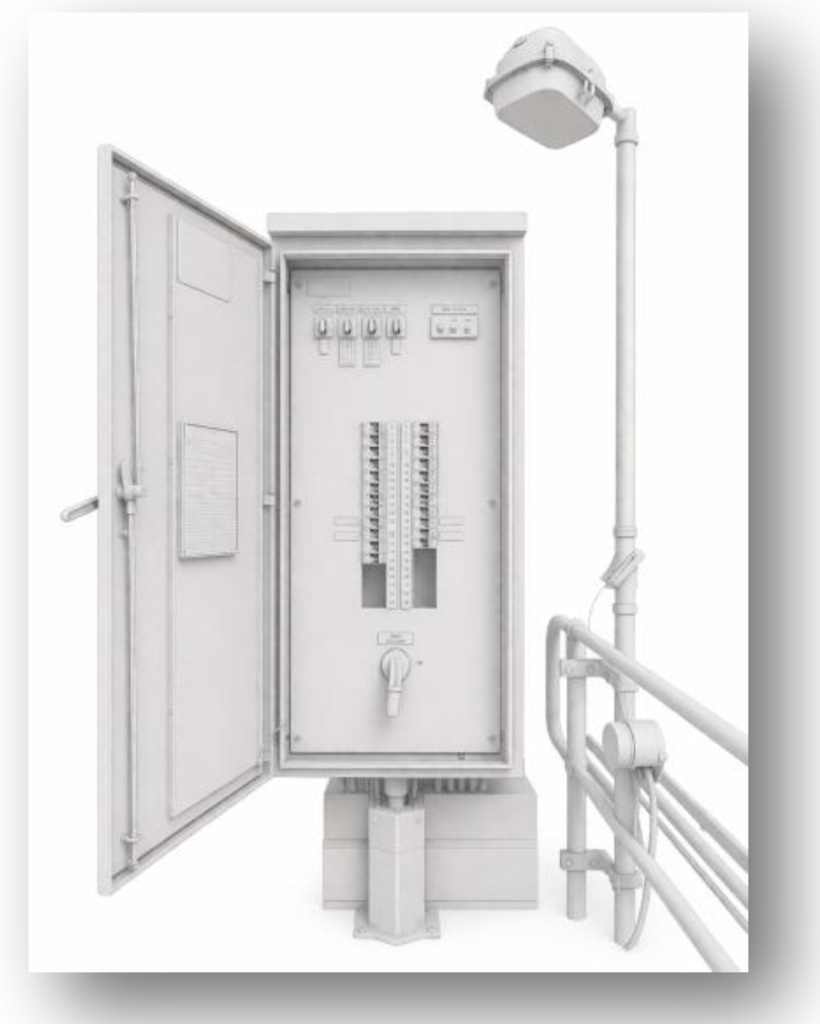

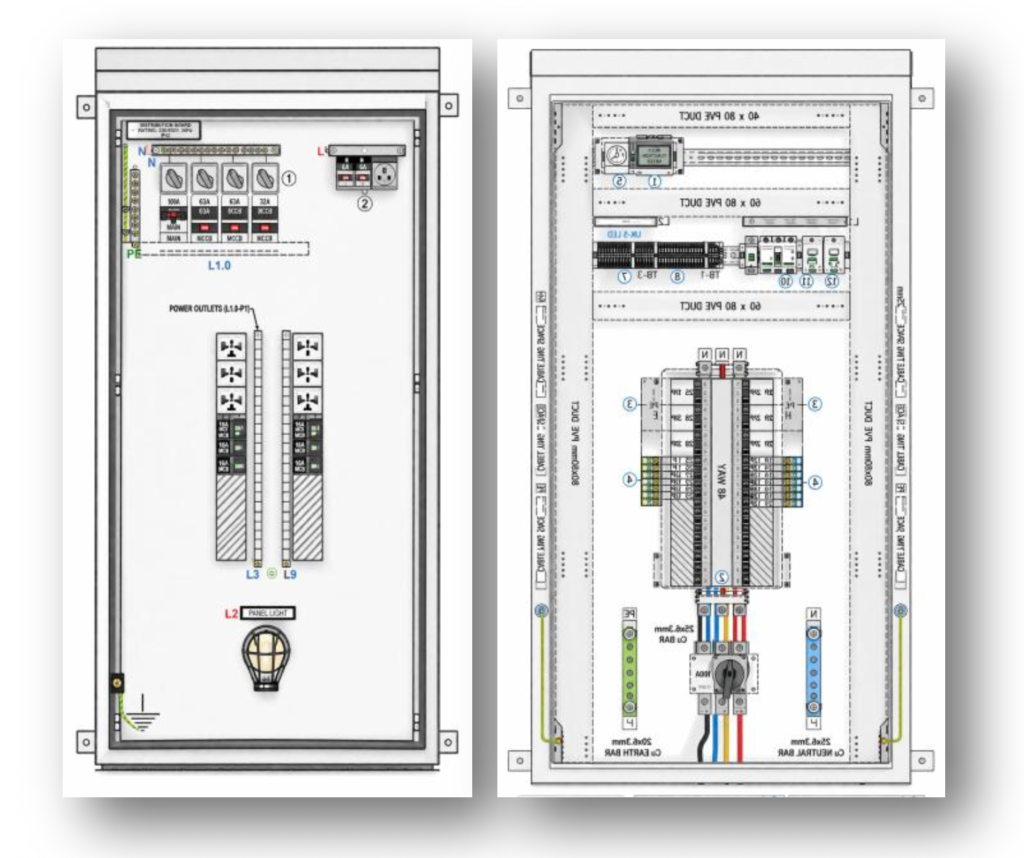

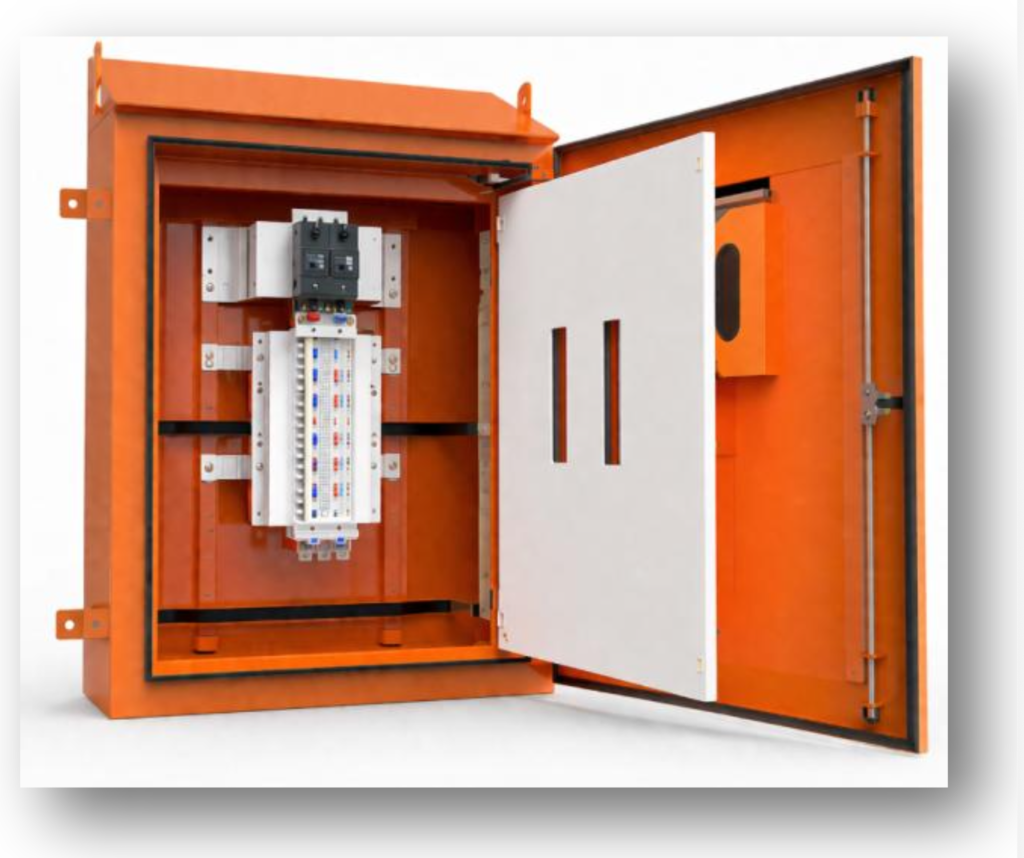

Light & Small Power Distribution Board
Light and Small Power Distribution Boards are purpose-built to safely distribute low-voltage power to lighting, socket outlets, and other small power circuits. Offering dependable performance, circuit protection, and compliance with project requirements, they are an efficient and practical solution for commercial, industrial, and infrastructure environments. At BiigEnergy, we customize every distribution board to suit your specific application. Share your load details and control requirements, and our expert engineers will take care of the design, giving you a reliable solution with minimal hassle.
– Mining Oil & Gas – Industrial –Commercial -Residential
Enclosure
- Heavy-duty industrial enclosure (Mild Steel / Stainless Steel 304 / Stainless Steel 316)
- Powder-coated or marine-grade finish
- IP65 / IP66 minimum protection rating
- UV and corrosion resistant
- Wall or structure mounted
- Large bottom gland plate to accommodate maximum cables
- 1.5mm stainless steel backing plate
- Custom built mounting brackets for Buss bar Chasis
- IP66 Viewing window for isolator status
- Perspex sheet provides IP2X safety, compliant with ASÂ 60529 / AS/NZS 60529
- Optional Enhancement
- Hazardous Area (Ex d : flame proof / Ex e: increased safety) version
- Sunshade canopy
- Anti-condensation heater
Features
- Primary MCB/Isolator and downstream RCDs
- In built Earth Leakage Test / Optional Rapid Earth Leakage Tester
- Wall or Floor mount options
- Fully welded construction
- Standard designs or customized according to customer’s needs
- Multiple gland plate options: Aluminum, Brass, Steel, PVC with top and Bottom Entries.
- Rain hood options
- Powder coated in Orange, Blue and Green Color
- Laser engraved SS or Traffolyte labels
- IP 65, IK10 minimum protection
- Compliance with Australian Standards.
- Manufactured according to customer specifications, specific standards, and customer designs.
Design Philosophy
BiigEnergy Local Control Stations are designed to provide safe, reliable, and operator-friendly light and small power distribution board for mining, oil & gas, industrial, commercial and residential Australian environments.
The design philosophy is centered on personnel safety, functional simplicity, durability, and compliance, ensuring that operators can start, stop, isolate, and monitor equipment with confidence at the point of operation.
BiigEnergy Products are Trusted and Reliable
Operator safety
All live parts are segregated and enclosed to reduce the risk of accidental contact. IP2X non- negotiable
Component selection
Enclosure & all components, cables are FAT and compliant to relevant ASNZS and IEC Standard
Clear Labelling
Emergency stop devices, lockable isolators, wiring and terminal blocks are clearly labelled.
Engineered for Durability
Designed to survive extreme harsh Australian industrial environments where reliability is critical.
Ease of maintenance
Optimized internal layouts, neat wiring, straightforward maintenance access. Terminations are clearly identified, control devices are logically grouped, and the overall construction supports efficient site commissioning and reduced lifecycle maintenance effort
Operational certainty
Deliver dependable performance in harsh operating conditions. LCS is robust, easy to use, and aligned with the AS/NZS standards
