Local Control Station (LCS)

Local Control Station (LCS) is a field-mounted control interface designed to provide manual operation and status indication of plant equipment such as motors, drives, pumps, crushers, and other process equipment. It enables local start/stop control, emergency shutdown, and operational status monitoring independent of the main control room (PLC/DCS). It can also be connected to main control system via RIO panels. Typical installation areas include mining sites, processing plants, substations, and heavy industrial facilities.

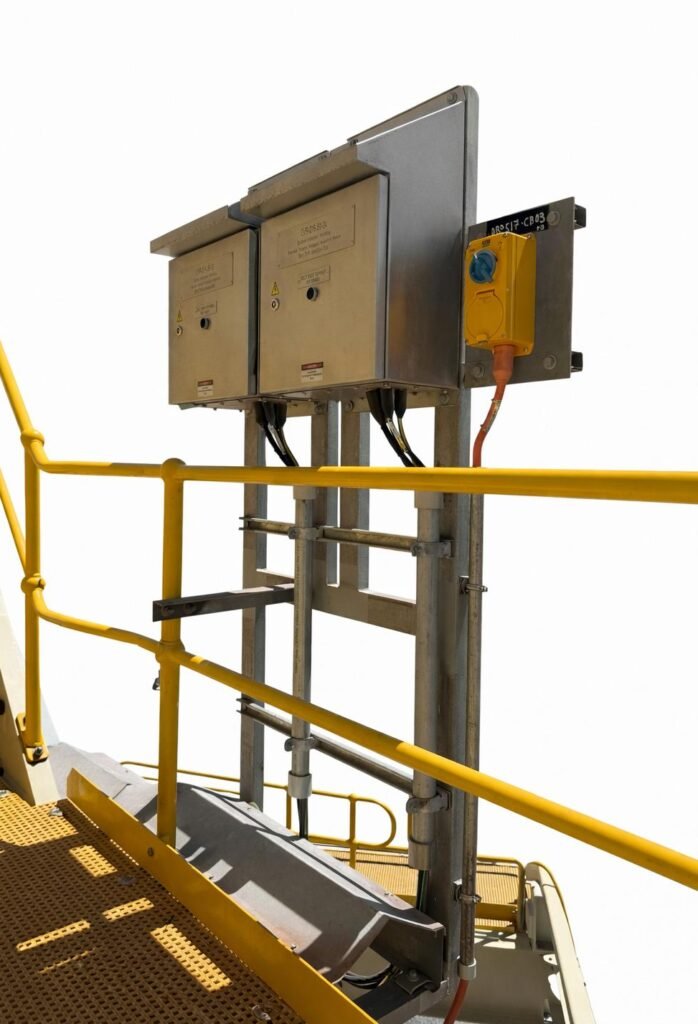

BiigEnergy LCS

Enclosure

  • Heavy-duty industrial enclosure (Mild Steel / Stainless Steel 304 / Stainless Steel 316)
  • Powder-coated or marine-grade finish
  • IP65 / IP66 minimum protection rating
  • UV and corrosion resistant
  • Wall or structure mounted
  • Large bottom gland plate to accommodate maximum cables
  • 1.5mm stainless steel backing plate
  • IP66 Viewing window for isolator status
  • Perspex sheet provides IP2X safety, compliant with AS 60529 / AS/NZS 60529
  • Optional Enhancement
    • Hazardous Area (Ex d : flame proof / Ex e: increased safety) versions
    • Sunshade canopy
    • Anti-condensation heater

Safety Control Devices

  • Mushroom-head emergency stop (maintained, twist-release)
  • Lockable clear protective cover prevents accidental activation
  • Start / Stop pushbuttons NO NC
  • Reset Button
  • Local/Remote or selector switches
  • Auto/Manual selector switches
  • Illuminated pilot lights
  • Ammeter / Voltmeter (optional)
  • Potentiometers (speed control)
  • Key switches (restricted access control)
  • Physical interlock between door lock and Isolator ON/OFF state
  • Additional redundancy interlock – pad lockable provision with isolator handle
electrical services

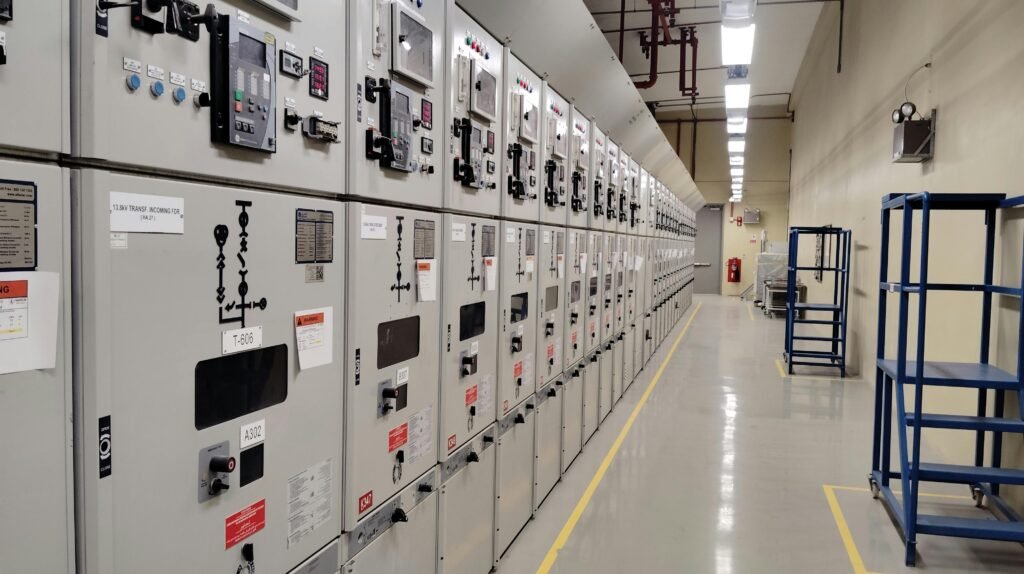

Long row of control panels in an industrial electrical control room, well-lit and spacious.

Laser Engraved Labels

  • Industrial-grade engraved Traffolyte / Stainless steel labels
  • Improved visibility in low-light or dusty environments
  • Excellent durability — resistant to impact, abrasion, and general wear.
  • High temperature resistance — suitable for hot industrial areas where plastic labels may deform.
  • UV resistant — suitable for outdoor use without fading like some printed labels.
  • Chemical resistance — handles oils, solvents, and cleaning agents better than many alternative materials.
  • Permanent identification — ideal for asset tags, machine nameplates, cable tags, and hazardous area equipment marking

Pre-assembled control unit

Local Control Stations are pre-assembled to provide reliable local operation of field equipment such as motors, pumps, conveyors and valves. Built, wired and tested before delivery, they reduce site installation time, improve build quality, and provide a consistent, durable solution for industrial environments.

  • Pre-wired internal harness
  • Ferruled and labelled wiring
  • Labelled rail terminal blocks
  • Plug-in screw/spring clamp Terminal Blocks options for rapid installation, suitable for high vibration area
  • Designed for site-specific PLC I/O configuration
  • Installed visual break isolator as per the design
  • Power circuits isolated by Perspex cover to provide
  • Provides IP2X minimum protection against hazardous live part and complies with AS 60529 / AS/NZS 60529.

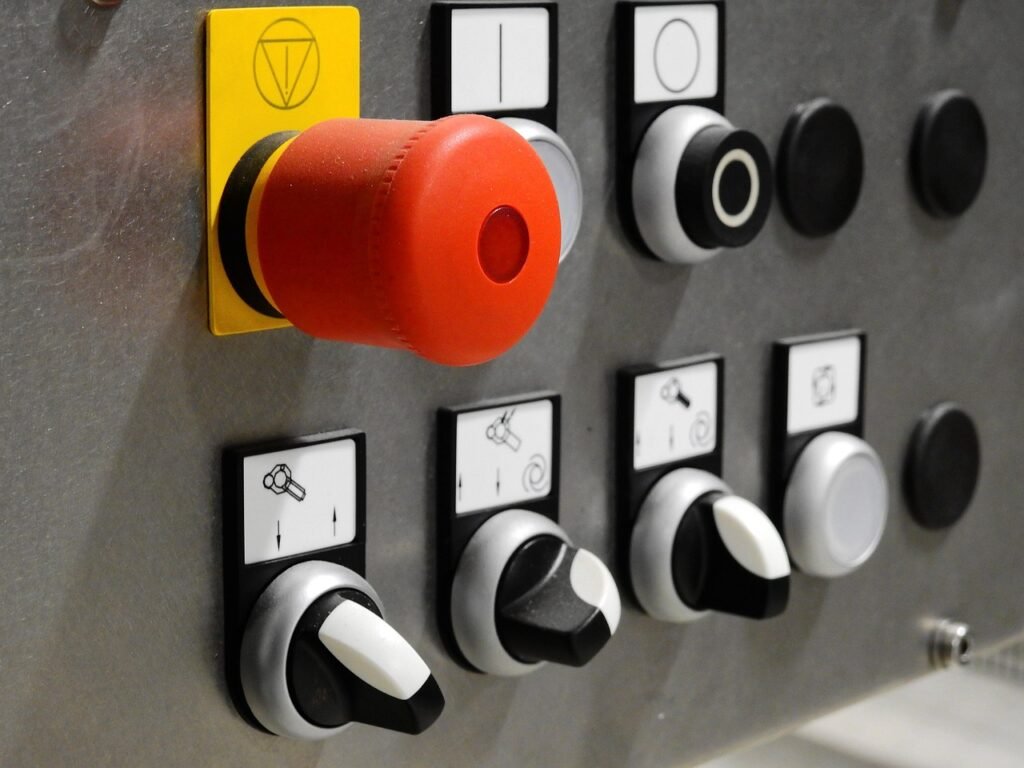

technology, anlagentechnik, investment, steering, control desk, controller, switch, button, stud, emergency stop switch, lamp, advertisement, electrical engineering, switch, switch, switch, switch, switch, electrical engineering
Aerial view of illuminated mining operations at night in Inden, Germany.

Electrical Specifications

  • Rated operation voltage upto 415VAC, 50Hz
  • Control Voltage: 24VDC / 48VDC/ 110VDC/ 110VAC / 230VAC (LV/ELV as required)
  • Impulse withstand voltage typically Uimp 4kV to 6kV depending upon component selection
  • Isolator rating from 63A AC to 1200A AC. Anything within these range
  • IP66, IK10, IP2X rated and AS/NZS 3000 compliant
  • AS/NZS & IEC-compliant components
  • Designed in accordance with applicable Australian Standards and project Technical specifications.
  • Enclosure current rating as per manufacturer specification.

Design Philosophy

BiigEnergy Local Control Stations are designed to provide safe, reliable, and operator-friendly field control for industrial equipment in harsh Australian environments. The design philosophy is centered on personnel safety, functional simplicity, durability, and compliance, ensuring that operators can start, stop, isolate, and monitor equipment with confidence at the point of operation.

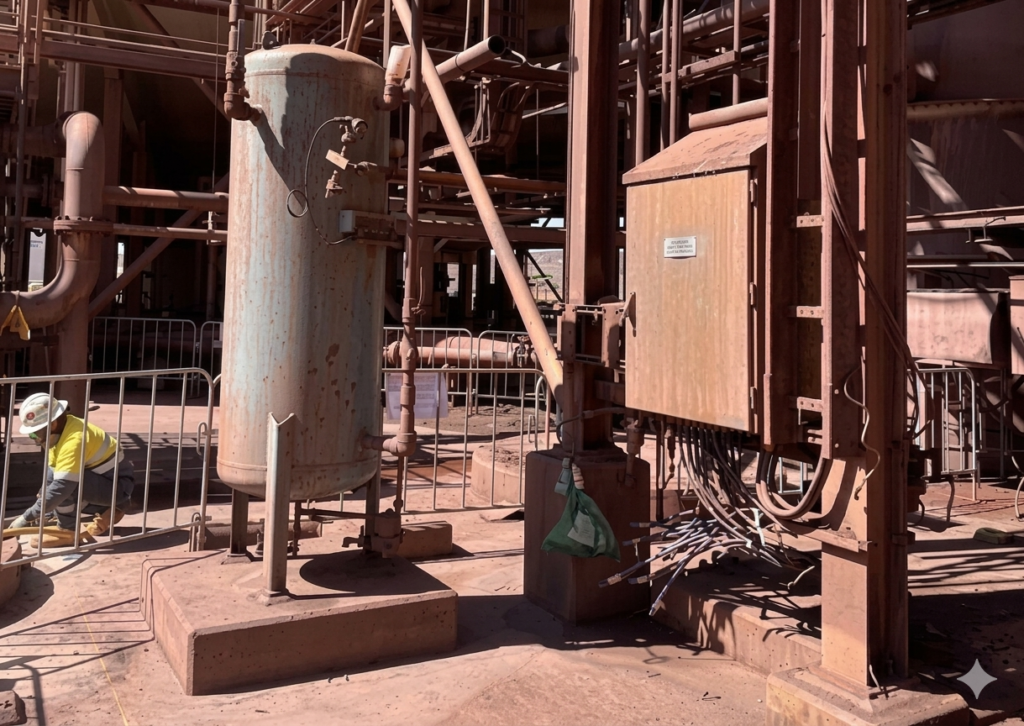

bbb

BiigEnergy Products are Trusted and Reliable

Operator safety

All live parts are segregated and enclosed to reduce the risk of accidental contact. IP2X non- negotiable

Component selection

Enclosure & all components, cables are FAT and compliant to relevant ASNZS and IEC Standard

Clear Labelling

Emergency stop devices, lockable isolators, wiring and terminal blocks are clearly labelled.

Engineered for Durability

Designed to survive extreme harsh Australian industrial environments where reliability is critical.

Ease of maintenance

Optimized internal layouts, neat wiring, straightforward maintenance access. Terminations are clearly identified, control devices are logically grouped, and the overall construction supports efficient site commissioning and reduced lifecycle maintenance effort

Operational certainty

Deliver dependable performance in harsh operating conditions. LCS is robust, easy to use, and aligned with the AS/NZS standards
